Lifting Plate Truck

Price : Contact us

Products added to cart

Short description:

Lifting plate truck is designed to lift objects and vehicles to the body of the...

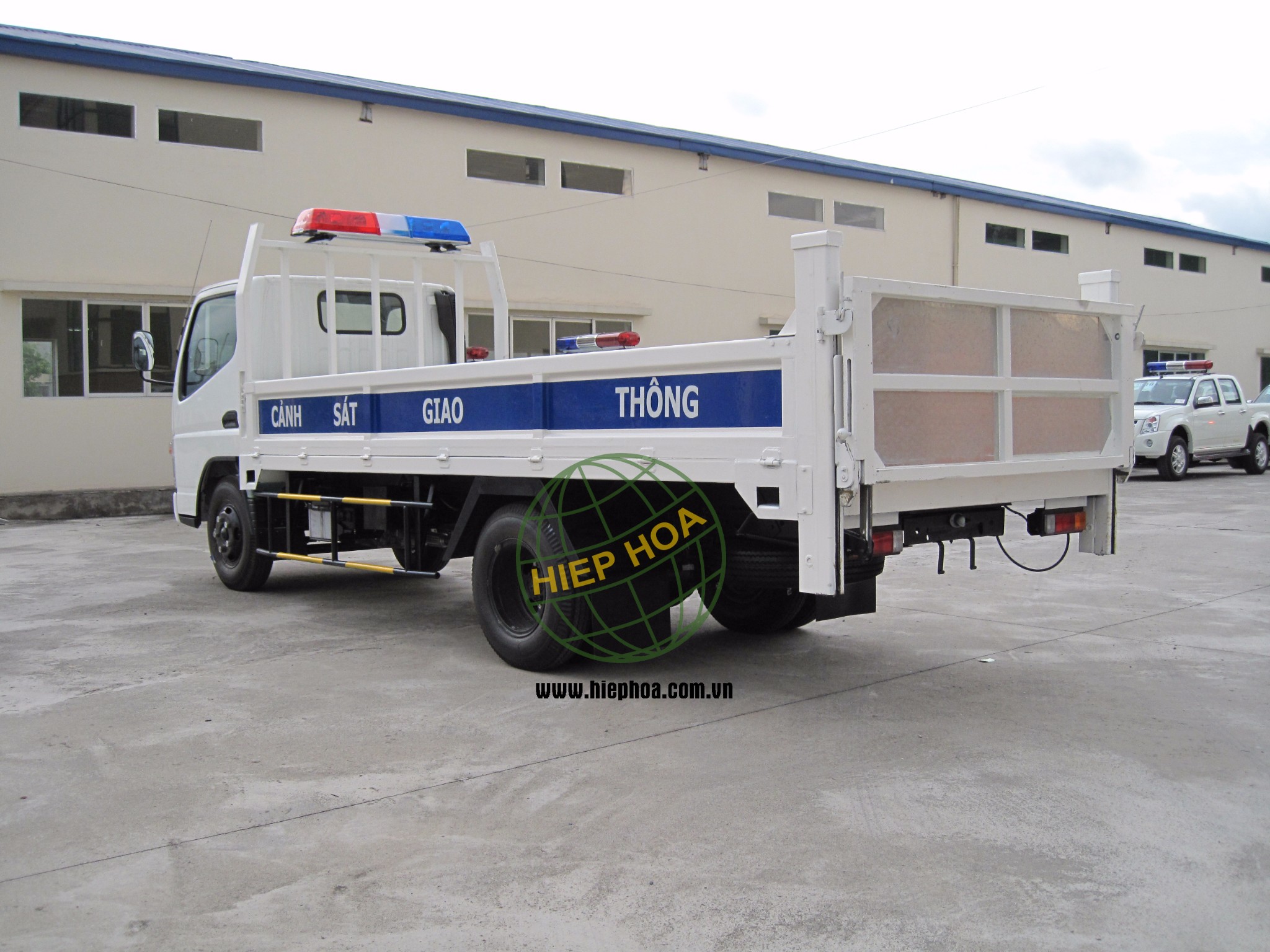

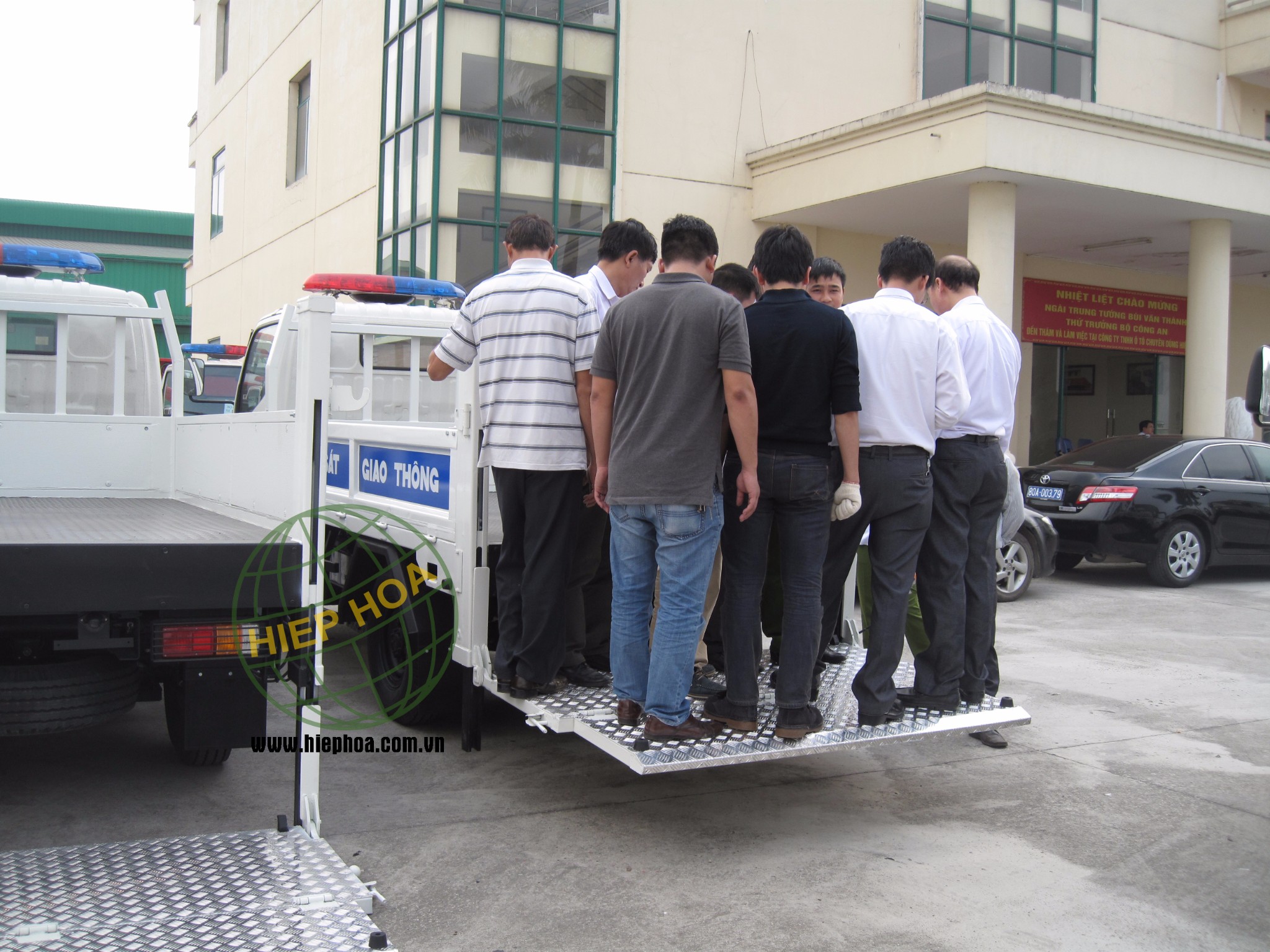

Lifting plate truck is designed to lift objects and vehicles to the body of the truck easily by lifting plate. The control box of lifting plate are located behind the cabin or remote.

Specification

Xe cơ sở / Chassis

Kia K190CS

Hino WU302L

ISUZU QKR55H

Kích thước tổng thể (DxRxC) /

Overall Dimension (LxWxH) (mm)

5.400 x 1.850 x 2.880

4.900x1.900x2.330

6.080x1.860x2.200

Kích thước thùng xe (DxRxC) /

Roof Dimension (LxWxH) (mm)

3.200 x 1.670 x 380

3.050x1.750x430

4.230x1.770 x430

Trọng lượng toàn bộ / G.V.W (kg)

4.850

4.850

4.700

Tải trọng (kg) / Payload

1.400

2.145

1.750

Công suất lớn nhất / Max. Output (kW/rpm)

61 kW/4.150 v/ph

77 kW/2.800 v/ph

67 kW/3.400 v/ph



Hệ thống nâng / Lifting system

Sức nâng lớn nhất / Max. Lifting Capacity

500 kg

Loại / Type

Foldable structure, 2 doors


•    Specification can be changed for improvement without notice
•    Bespoke service is available
