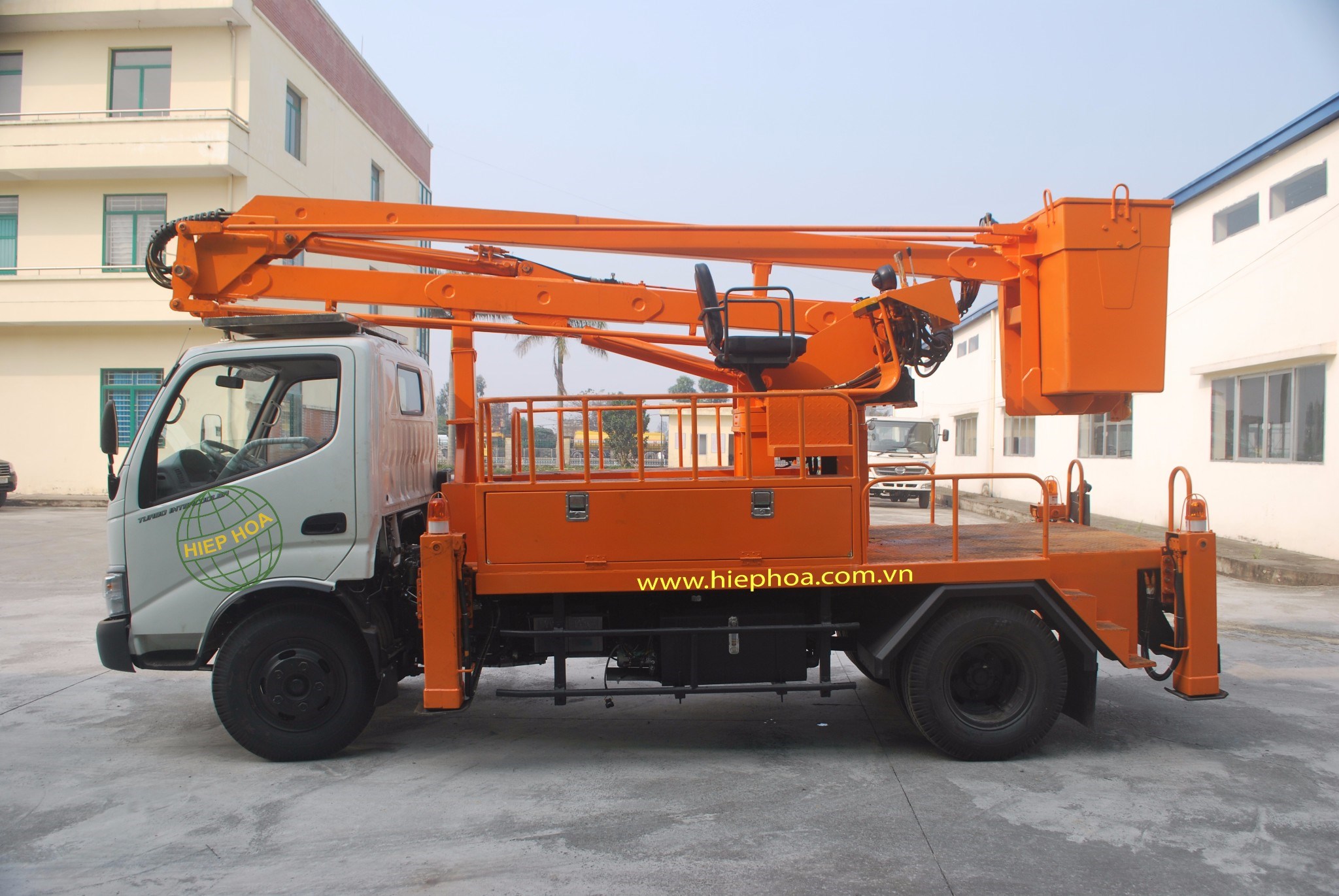

Aerial Platform Truck is designed to bring people to work at height. By safety lifting system, people can work on the top effectively and conveniently
Specification WU342L-NKMTJD3/HIEPHOA-CTD
| Overall dimension (LxWxH) | 5,850 x 1,950 x 2,970 mm |
| Wheelbase | 3,380 mm |
| Payload | 5,760 kg |
| Tổng trọng lượng (G.V.W) | 6,055 kg |
| Lifting system | 2 points - on the basket and lower of control board |
Turning capacity
| 360° both sides |
| Lifting Angle | 0° - 60° |
| Max. Working Height | 10 m |
| Working radius | 4m |
| Basket payload | 200 kg |
| Safety system | Emergency stop, safety belt |
