Barbed Wire Handling Truck

Price : Contact us

Products added to cart

Short description:

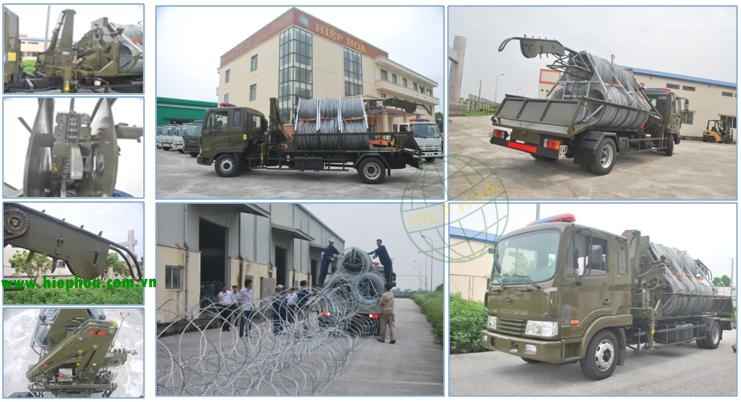

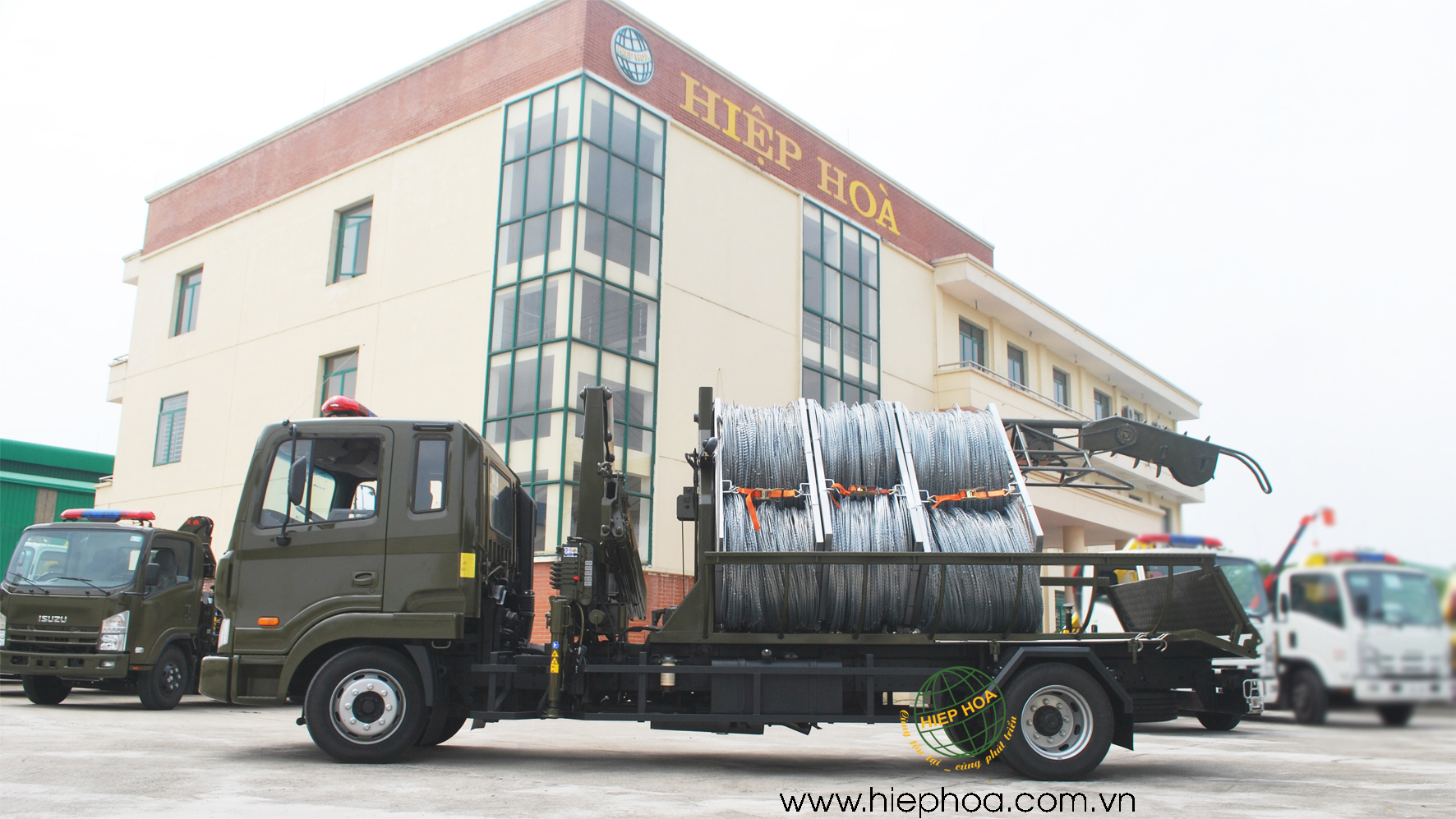

Hiep Hoa barbed wire spreading machine helps to prevent and protect the population, the building...

Hiep Hoa barbed wire spreading machine helps to prevent and protect the population, the building when the protest, the crowd.

THÔNG SỐ KỸ THUẬT

Model

HINO FC9JJSW/HIEP HOA-RTG

Chassis

HINO FC9JJSW

Wheelbase (mm)

4.350 mm

Overall: LxWxH

7.665 x 2.450 x 2.950 mm

Total mass

6.945 kg

Kerb weight

6.750 kg

Cabin seats

03

Engine

J05E-TE (Diesel, 4-stroke, 4 cylinder straight, turbocharged)

Max. output/rpm

118 Kw/2.500 rpm

Max. torque (n.m/rpm)

520 N.m/1.500 rpm

Displacement

5.123 cc

Special System

Barbed wire handling system

Fence type, 03 module Structure

Max. time of extracting wire (03 module): 4 minutes

Max. time of shortening wire (03 module) 25 minutes

Max. length of the wire fence when extracting 03 module: 225m
