Hiep Hoa Automotive Group Joint Stock Company is the largest specialized vehicle manufacturer in Vietnam and the leading manufacturer in Southeast Asia. With a cluster of 7 manufacturing plants, a total area of 56,125 m2 and more than 300 high-quality engineer workers, we provide a variety of products from spray guns, hydraulic cylinders,... to specialized vehicles that require high technology and quality.

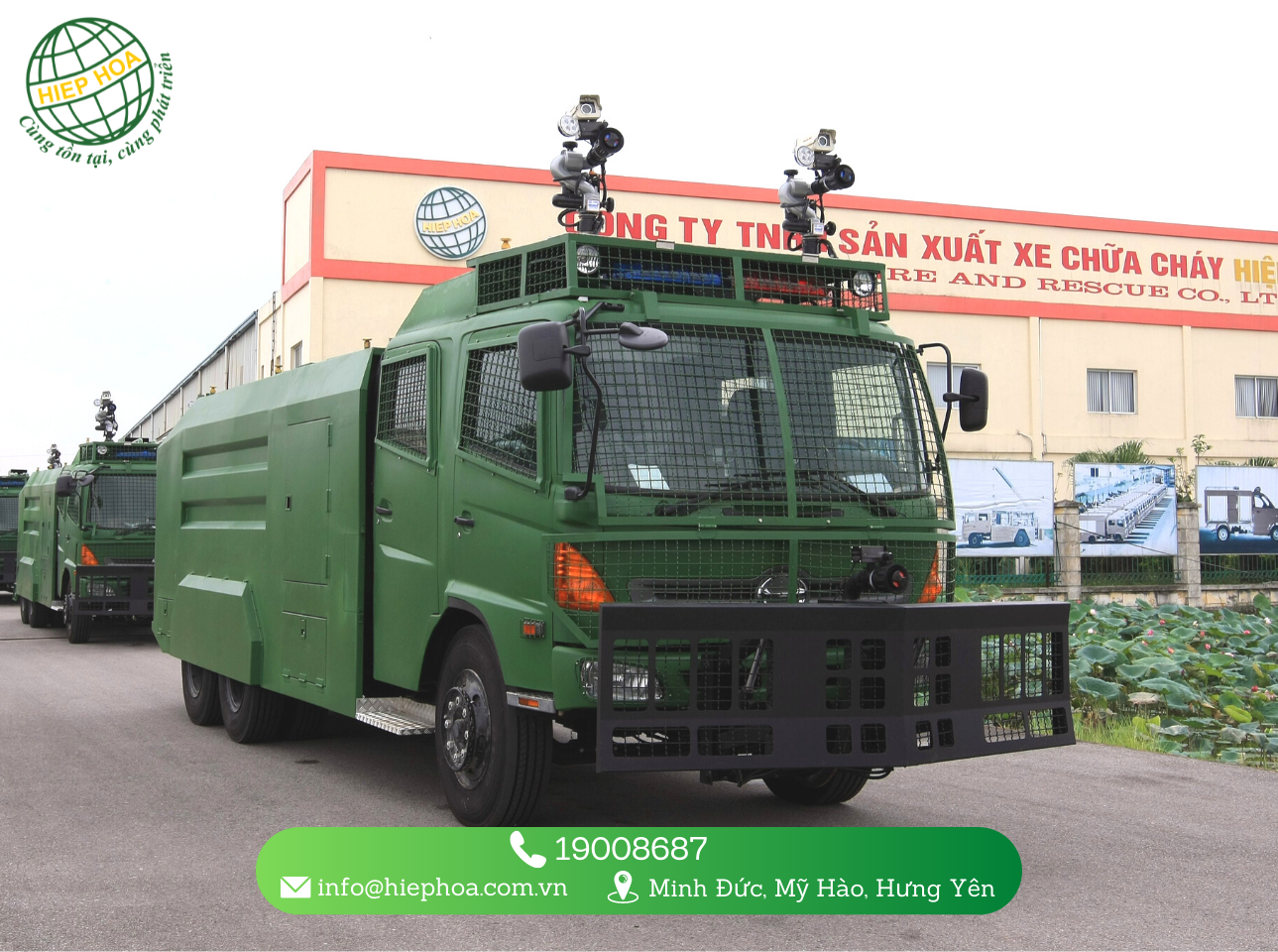

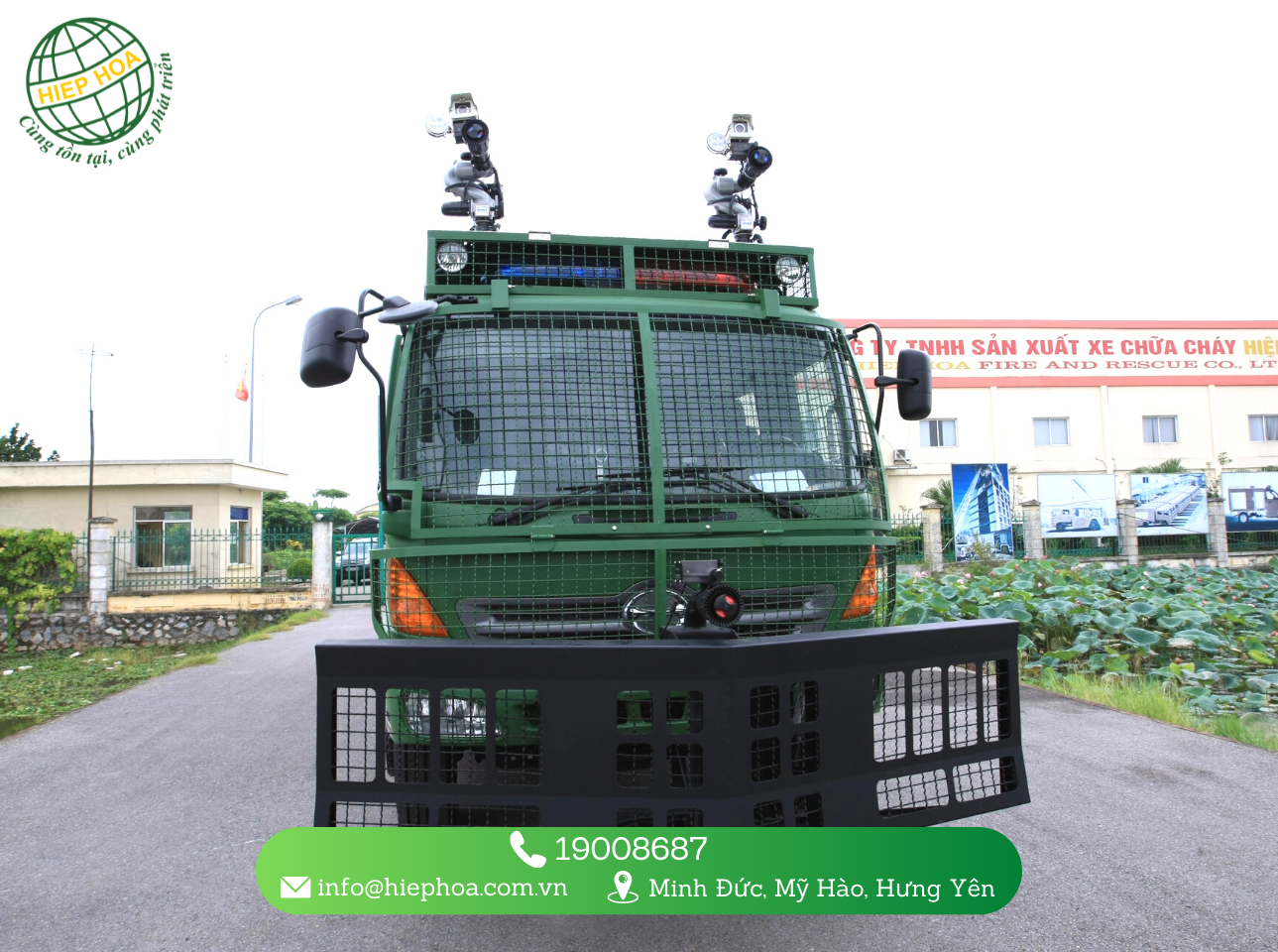

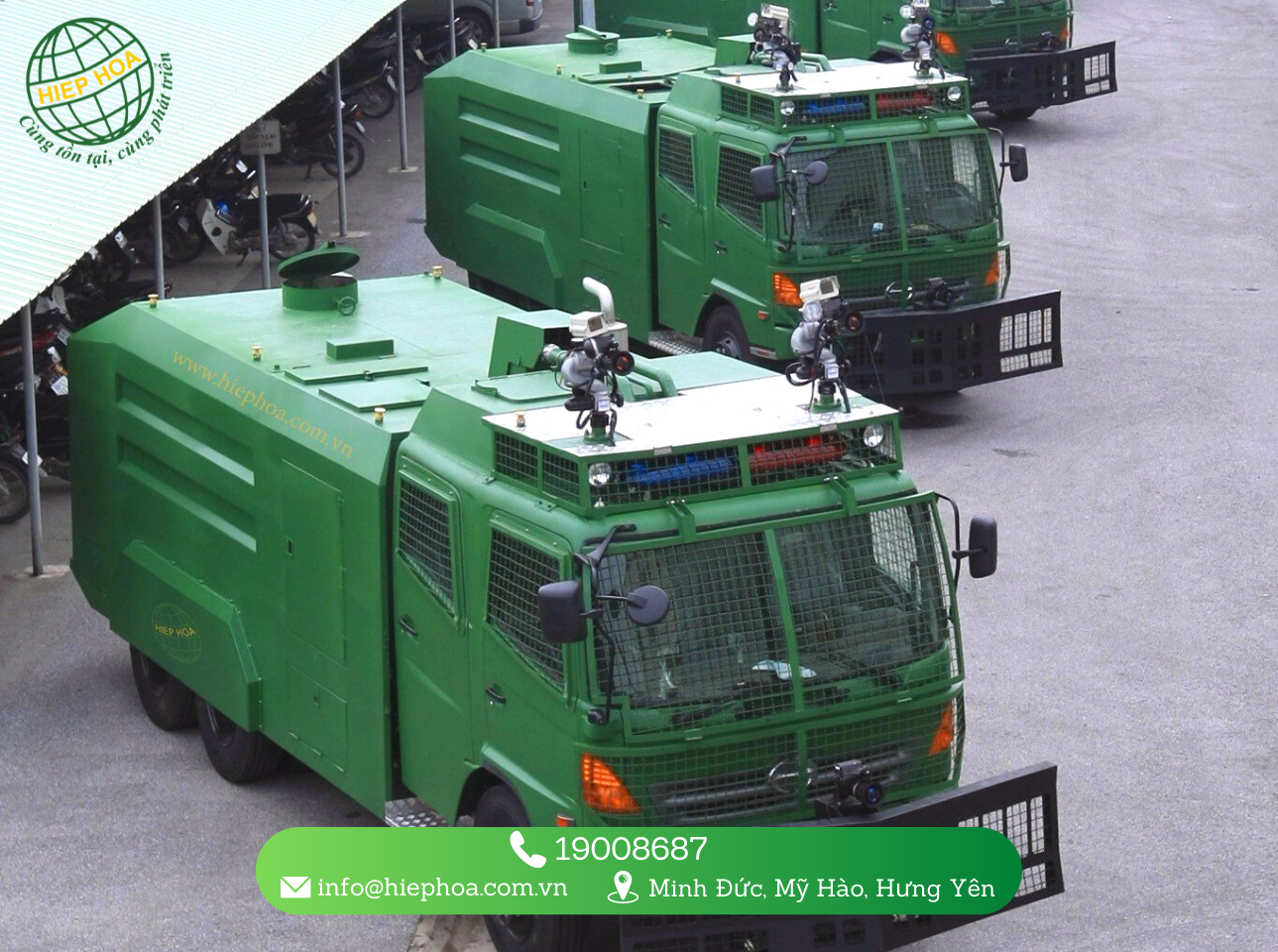

Anti-riot water spray vehicles are built for national security and defense to quell riots and disperse crowds. The vehicle is equipped with 2 main spray guns on the cabin roof and 1 auxiliary spray gun. Specialized spray guns can operate independently or together when they can both spray water and foam.
Technical specifications
|
Model |
HINO FM8JNSA 6x4/HIỆP HÒA-CBĐ |
|
Chassis |
HINO FM8JNSA |
|
Wheelbase |
4.130+1.300 |
|
Overall: LxWxH |
8.650 x 2.480 x 3.250 mm |
|
Total mass |
22.950 kg |
|
Kerb weight |
12.500 kg |
|
Wheel configuration |
6x4R |
|
Engine |
J08E-UF (Diesel, 4-stroke, 6-cylinder in-line, turbocharged) |
|
Max. output/rpm |
184 Kw/2.500 rpm |
|
Max torque |
739 N.m/1.500 rpm |
|
Displacement |
7.684 cc |
|
Specialized system |
|
|
Blade |
Equipped in front of the cabin |
|
Water pump |
Darley KSE750 2.839 (lpm) at 10.3 bar |
|
Water tank |
9,000 liters, box shaped, made of SUS 304 |
|
Foam tank |
Foam tank: 500 liters, rectangular shape, made of SUS 316 Tear gas tank: 80 liters, SUS 316 Tank containing dye: 80 liters, SUS 316 |
|
Main spray gun |
2 pcs on the cabin roof - Long spray range with a maximum distance of 40 - 50 m horizontally - Main water gun rotation angle: Up: 900; down: 450, total rotation angle: 370o
|
|
Secondary spray gun |
- 1 handheld spray gun with a horizontal spray range of 30 m
|
