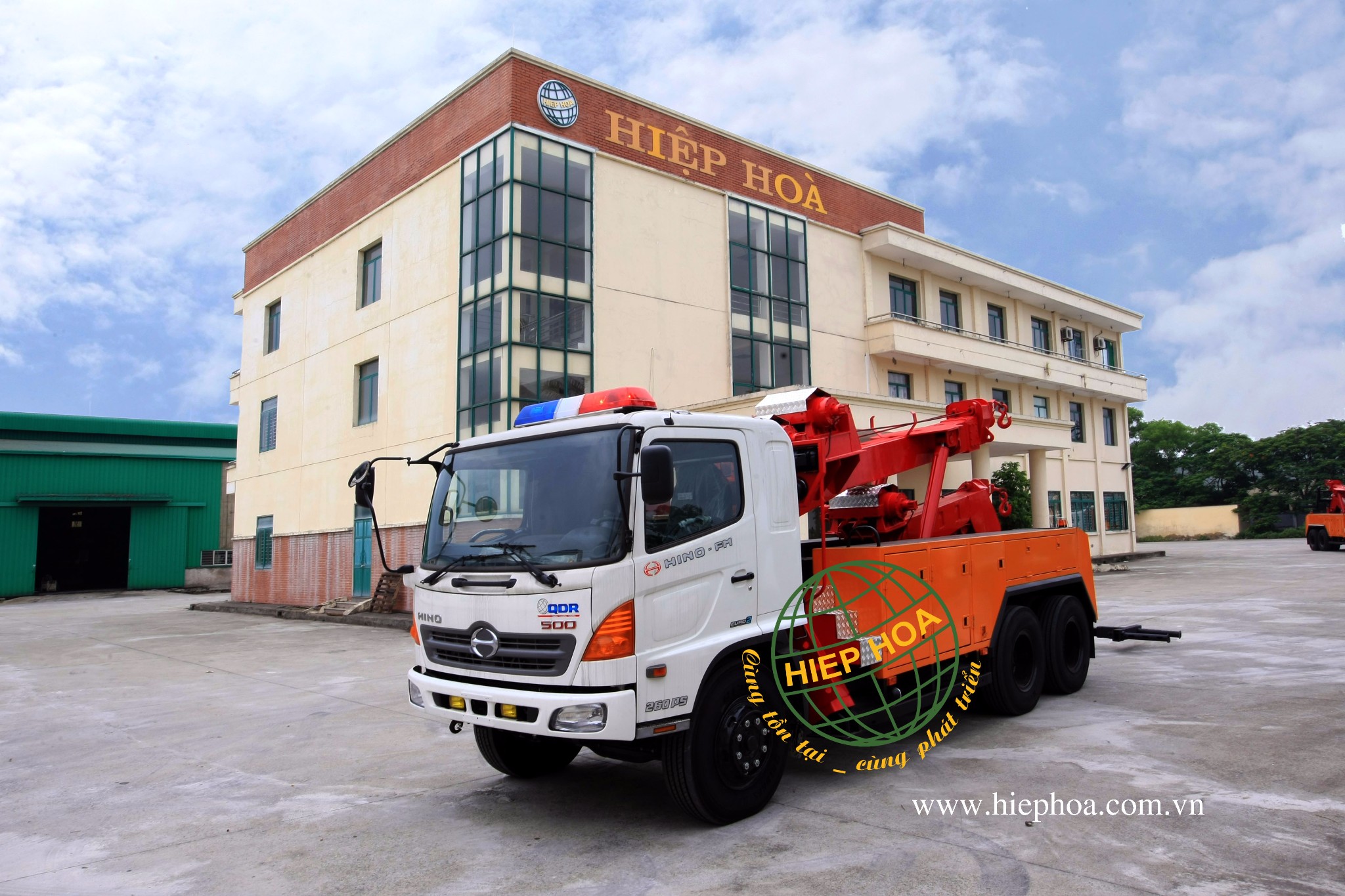

Heavy Wrecker Truck

Price : Contact us

Products added to cart

Short description:

Heavy wrecker truck is the best solution for rescue damaged vehicles or other objects on...

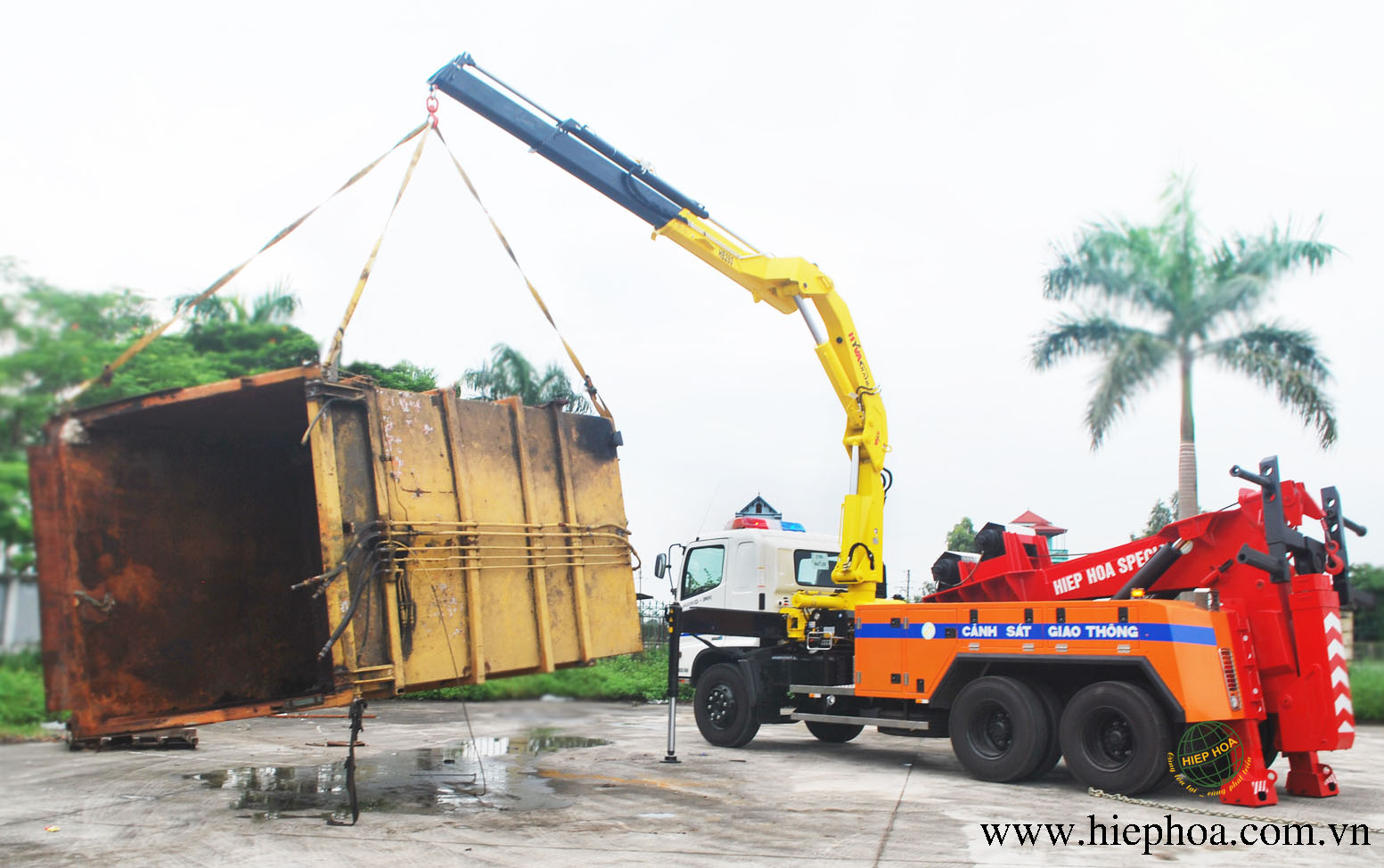

Heavy wrecker truck is the best solution for rescue damaged vehicles or other objects on the road. Thanks to folding crane and hoisting system, the road clearance work can be done fast and safety.

Model

Model

HINO- FM8JNSA6x4/Hiệp Hoà - CH

 Chassis


Hino FM

Overall Dimenssion

(LxWxH) mm

8.330x2.500x3.520

Wheelbase (mm)

4130+1300

Groud Clerance (mm)

265

Weight

G.V.W (kg)

18.160

Payload (kg)

3.000

Max. Speed (km/h)

80

Engine

Type

Diesel, 4 cycle, 6 cylinders in line, water cooled.

Max. Output (KW/rpm)

184 / 2500

Max. Torque (N x m x rpm)

745 / 1500

Special Rescue Equipment

Number of sections

02

Boom lifting angle (degree)

3,5 - 40

Max. Working Height (mm)

6368

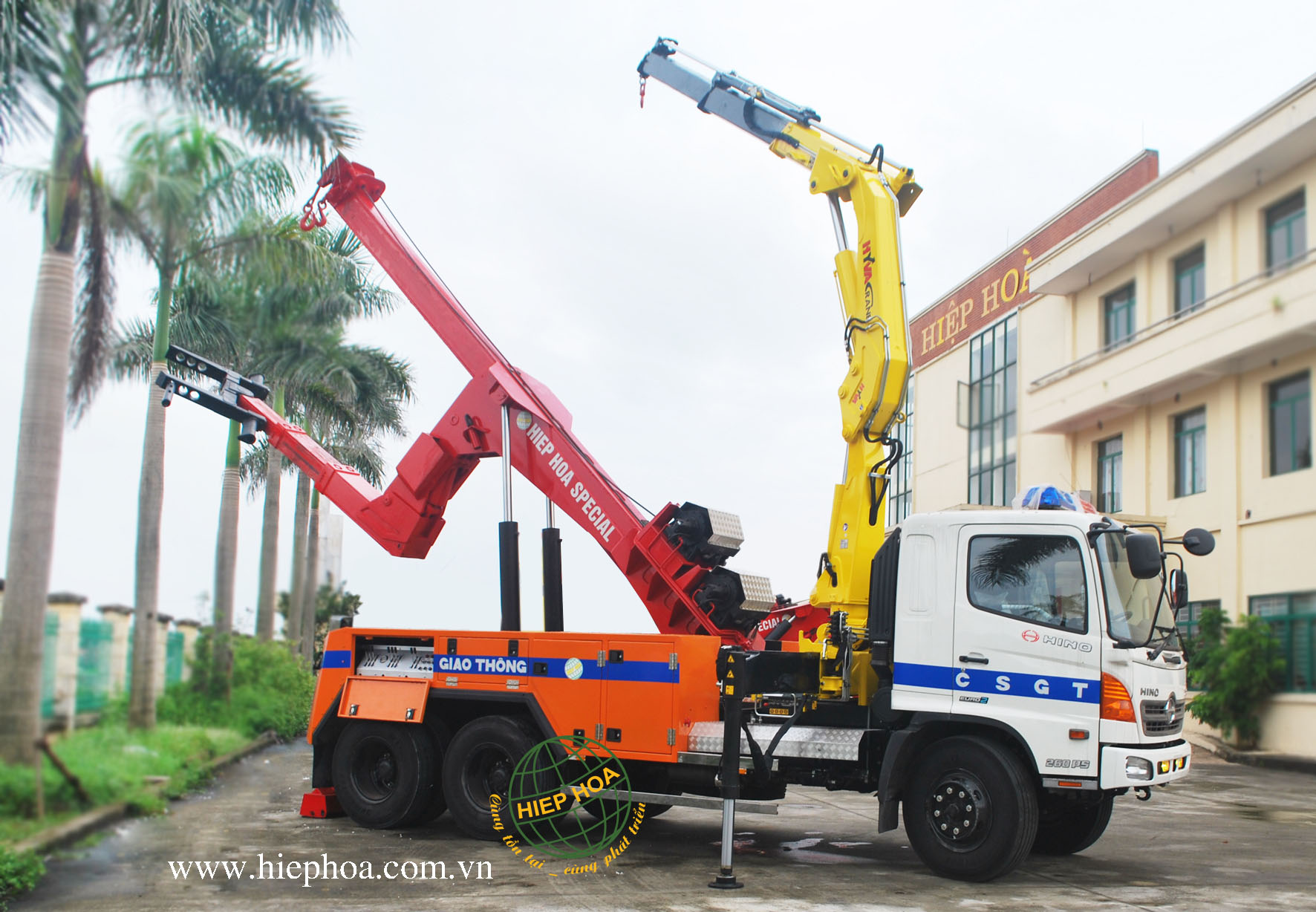

Fold Crane

Number of sections

02

Max. Working Height (m)

11,9

Lifting capacity / working radius kG/m

25430/1,0;

9685/2,55;

5900/4,31;

4065/6,08;

3055/7,93
