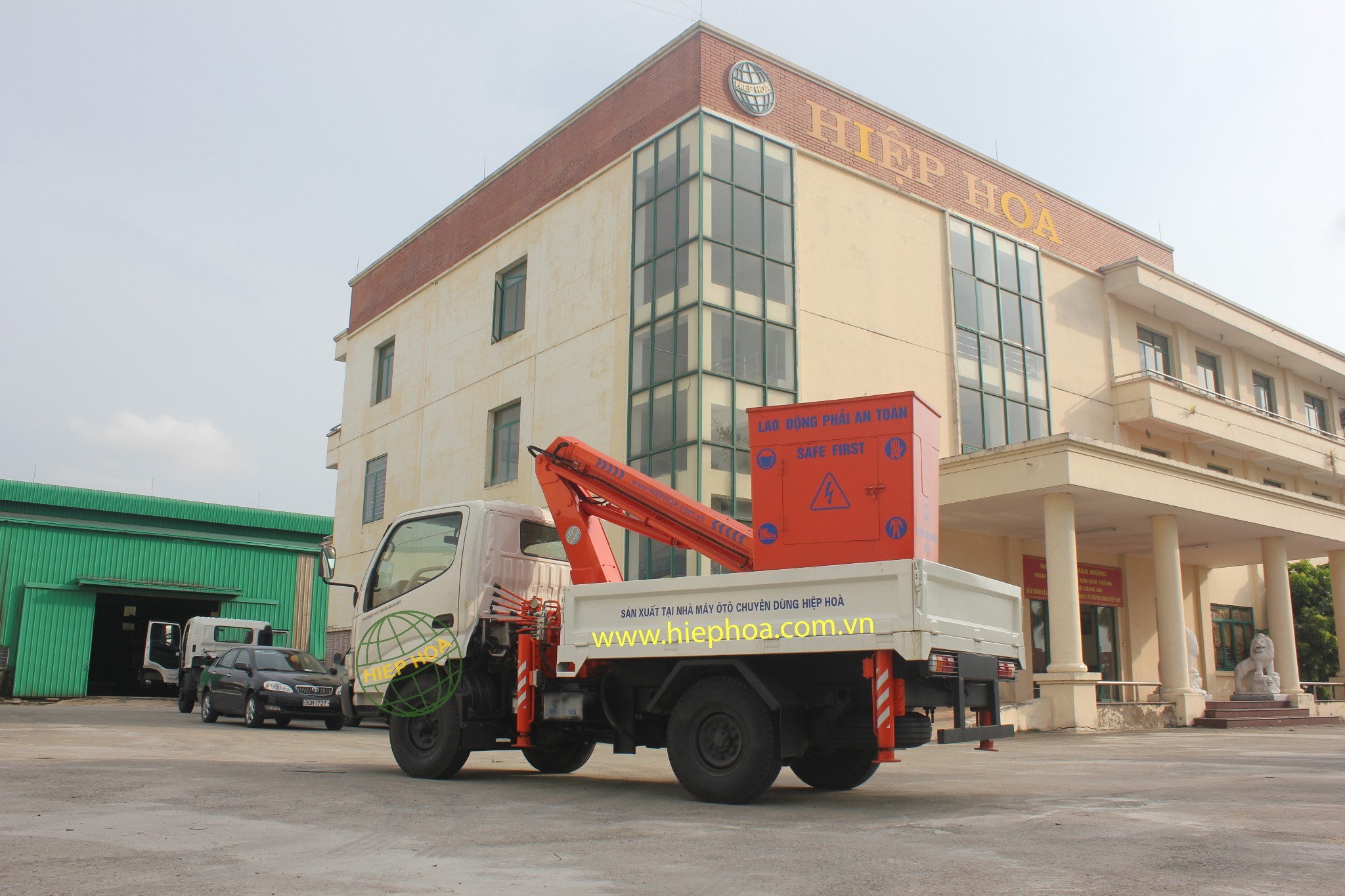

Aerial Platform Truck (Crane with case)
Aerial Platform Truck (Crane with case)

Aerial Platform Truck (Crane with case)

Price : Contact us

Products added to cart

Short description:

Ariel Platform Truck (Crane with case) is designed for people who work at height. Along...

Ariel Platform Truck (Crane with case) is designed for people who work at height. Along with the best quality of materials as well as talented and skillful workers, the product is helping people have best performance in protected condition.

Specification

Chassis

HINO WU

Overall dimensions (mm)

9,670 * 2,500 * 3,730

Gross weight (kg)

15,100

Payload (kg)

4,350

Body dimensions (L * W * H) (mm)

6,400 * 2,360 * 450

Body wall

Steel, thickness of 2mm

Body floor

Wooden, thickness of 3mm

Crane system with case

Lifting capacity: 6,600kg @ 2.5m

Max. working radius (m)

18.7

Max. lifting height (m)

21.7

Lifting angle

1⁰ - 76⁰

Turning angle

360⁰ coonstantly

Winch

Ф 10*100 m

Case

Materials

Composite

Max. lifting capacity

200 kg (2 people and tools)

Safety equipment

Hydraulic balance system

  • Specifications can be changed due to improvement without asking for permission
  • Customization is available
